Metso Barmac VSI Down Flow Liner – Vertical Impact Crusher Lower Flow Channel Wear Plate Supplier

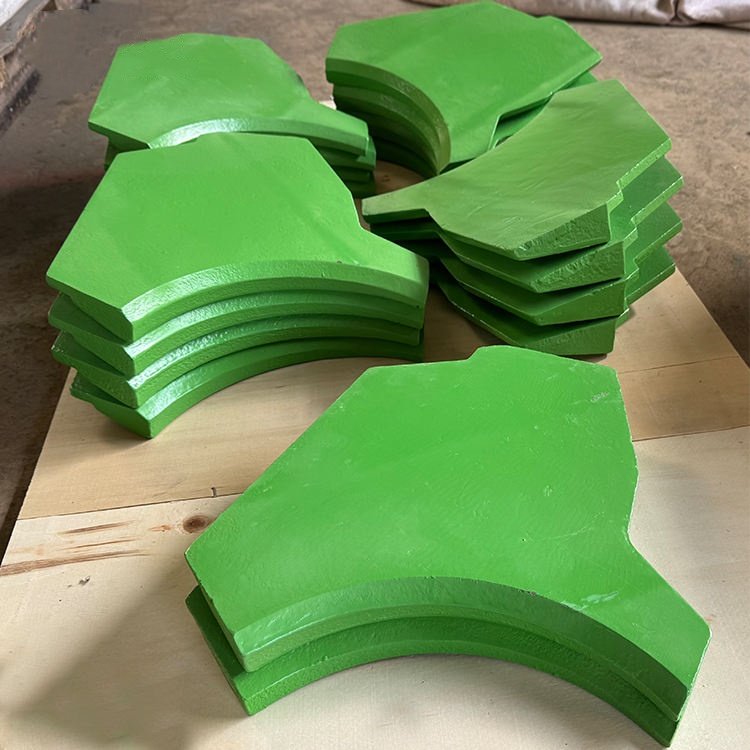

The product shown in the picture is Metso Barmac VSI down flow liner (lower flow channel wear plate), the key wear-resistant component installed at the bottom of the VSI rotor. It guides high-speed stone material out of the rotor runner, bears long-term strong material scouring, and protects the rotor base from abrasion damage.
We are a professional casting factory supplying complete wear spare parts for all Metso Barmac VSI vertical impact crushers, fully compatible with all Barmac B-series sand making machines for aggregate shaping, hard rock crushing and construction waste recycling production lines.
Complete Range of Barmac VSI Spare Parts We Supply
1. Flow channel wear series: Down flow liner, upper flow liner, flow guide inserts, rotor outlet wear guards
2. Rotor core wear parts: Rotor tips, tip holders, fixing wedges, rotor side wear plates, rotor bottom liners
3. Distributing & feeding accessories: Distributing cone, feed tube, feed eye ring, hopper anti-wear liner
4. Impact crushing wear parts: Anvil ring, anvil blocks, curtain wear plates, impact apron liners
5. Cavity protection components: Upper cavity liner, lower cavity liner, side guard wear plates
6. Bearing & friction parts: Copper sleeves, bearing sleeves, eccentric bronze sleeves, thrust plates
7. Sealing & standard spare parts: Oil seal kits, tension springs, fixing bolts
8. Auxiliary wear accessories: Rotor central tube, splash shield, anti-abrasive protective inserts
Material & Product Advantages of Our Down Flow Liner & VSI Spare Parts
1. Two grades of wear-resistant casting materials for selection
– Standard version: High toughness wear-resistant casting, strong impact resistance, suitable for limestone, river pebble and medium-hard stone crushing;
– Heavy-duty enhanced version: High-hardness composite wear casting, special for granite, basalt, quartz sand and other high-abrasive hard rock working conditions, longer service life than ordinary cast wear parts.
2. Precision lost foam casting process: Strictly replicate OEM original dimensions of Metso Barmac VSI, no cutting or grinding required during field installation, perfect assembly fit.
3. Full stock coverage: All models of down flow liners and full-series VSI wear parts are in stock, support small trial orders and bulk wholesale, factory direct sales without middle markup.
4. Custom casting service: We can produce non-standard down flow liners and copper sleeves according to your equipment drawings or physical samples.
5. Multi-process strict quality inspection: Each batch of flow liners and copper sleeves pass hardness test, dimensional tolerance detection and wear simulation test before shipment, stable 24-hour continuous operation for quarry production lines.
Our Metso Barmac VSI down flow liner and full set crusher spare parts are widely used in quarry artificial sand production, highway high-standard aggregate processing, construction waste recycling and mineral fine crushing industries. If you need down flow liner, copper sleeves or any other wear spare parts for Metso Barmac VSI vertical impact crusher, send your equipment model or part drawing for instant quotation.
